In Part 2: Analyzing Syntax Trees With LINQ, we explored different approaches to picking apart pieces of the syntax tree. This approach works well when you’re only interested in specific pieces of syntax (methods, classes, throw statement etc.) It’s great for singling out certain parts of the syntax tree for further investigation.
However, sometimes you’d like to operate on all nodes and tokens within a tree. Alternatively, the order in which you visit these nodes might be important. Perhaps you’re trying to convert C# into VB.Net. Or maybe you’d like to analyze a C# file and output a static HTML file with correct colorization. Both of these programs would require us to visit all nodes and tokens within a syntax tree in the correct order.
The abstract class CSharpSyntaxWalker allows us to construct our own syntax walker that can visit all nodes, tokens and trivia. We can simply inherit from CSharpSyntaxWalker and override the Visit() method to visit all nodes within the tree.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| public class CustomWalker : CSharpSyntaxWalker | |
| { | |
| static int Tabs = 0; | |
| public override void Visit(SyntaxNode node) | |
| { | |
| Tabs++; | |
| var indents = new String('\t', Tabs); | |
| Console.WriteLine(indents + node.Kind()); | |
| base.Visit(node); | |
| Tabs—; | |
| } | |
| } | |
| static void Main(string[] args) | |
| { | |
| var tree = CSharpSyntaxTree.ParseText(@" | |
| public class MyClass | |
| { | |
| public void MyMethod() | |
| { | |
| } | |
| public void MyMethod(int n) | |
| { | |
| } | |
| "); | |
| var walker = new CustomWalker(); | |
| walker.Visit(tree.GetRoot()); | |
| } |
This short sample contains an implementation of CSharpSyntaxWalker called CustomWalker. CustomWalker overrides the Visit() method and prints the type of the node being currently visited. It’s important to note that CustomWalker.Visit() also calls the base.Visit(SyntaxNode) method. This allows the CSharpSyntaxWalker to visit all the child nodes of the current node.

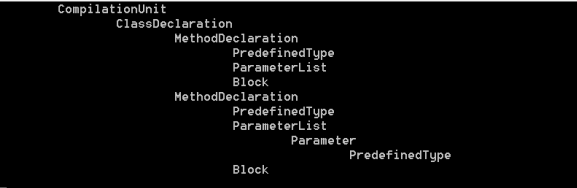

We can clearly see the various nodes of the syntax tree and their relationship with one another. There are two sibling MethodDeclarations who share the same parent ClassDeclaration.
This above example only visits the nodes of a syntax tree, but we can modify CustomWalker to visit tokens and trivia as well. The abstract class CSharpSyntaxWalker has a constructor that allows us to specify the depth with which we want to visit.
We can modify the above sample to print out the nodes and their corresponding tokens at each depth of the syntax tree.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| public class DeeperWalker : CSharpSyntaxWalker | |
| { | |
| static int Tabs = 0; | |
| //NOTE: Make sure you invoke the base constructor with | |
| //the correct SyntaxWalkerDepth. Otherwise VisitToken() | |
| //will never get run. | |
| public DeeperWalker() : base(SyntaxWalkerDepth.Token) | |
| { | |
| } | |
| public override void Visit(SyntaxNode node) | |
| { | |
| Tabs++; | |
| var indents = new String('\t', Tabs); | |
| Console.WriteLine(indents + node.Kind()); | |
| base.Visit(node); | |
| Tabs—; | |
| } | |
| public override void VisitToken(SyntaxToken token) | |
| { | |
| var indents = new String('\t', Tabs); | |
| Console.WriteLine(indents + token); | |
| base.VisitToken(token); | |
| } | |
| } |
Note: It’s important to pass the appropriate SyntaxWalkerDepth argument to CSharpSyntaxWalker. Otherwise, the overridden VisitToken() method is never called. Personally, I don’t think CSharpSyntaxWalker’s arguments should be optional. It was unclear to me that the most conservative depth would be walked when I was learning how to use this class.

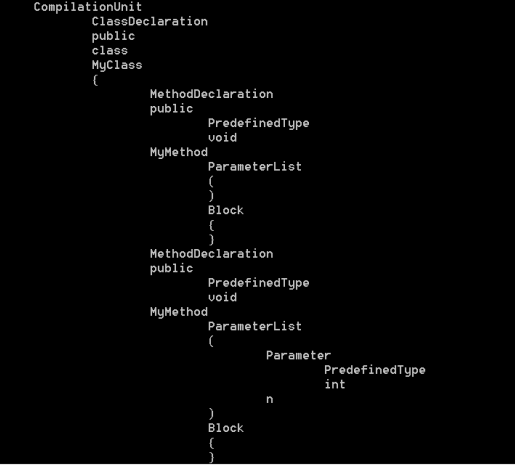

The output when we use this CSharpSyntaxWalker:
The previous sample and this one share the same syntax tree. The output contains the same syntax nodes, but we’ve added the corresponding syntax tokens for each node.
In the above examples, we’ve visited all nodes and all tokens within a syntax tree. However, sometimes we’d only like to visit certain nodes, but in the predefined order that the CSharpSyntaxWalker provides. Thankfully the API allows us to filter the nodes we’d like to visit based on their syntax.
Instead of visiting all nodes as we did in previous samples, the following only visits ClassDeclarationSyntax and MethodDeclarationSyntax nodes. It’s extremely simple, just printing out the concatenation of the class’ name with the method’s name.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| public class ClassMethodWalker : CSharpSyntaxWalker | |
| { | |
| string className = String.Empty; | |
| public override void VisitClassDeclaration(ClassDeclarationSyntax node) | |
| { | |
| className = node.Identifier.ToString(); | |
| base.VisitClassDeclaration(node); | |
| } | |
| public override void VisitMethodDeclaration(MethodDeclarationSyntax node) | |
| { | |
| string methodName = node.Identifier.ToString(); | |
| Console.WriteLine(className + '.' + methodName); | |
| base.VisitMethodDeclaration(node); | |
| } | |
| } | |
| static void Main(string[] args) | |
| { | |
| var tree = CSharpSyntaxTree.ParseText(@" | |
| public class MyClass | |
| { | |
| public void MyMethod() | |
| { | |
| } | |
| } | |
| public class MyOtherClass | |
| { | |
| public void MyMethod(int n) | |
| { | |
| } | |
| } | |
| "); | |
| var walker = new ClassMethodWalker(); | |
| walker.Visit(tree.GetRoot()); | |
| } |
This sample simply outputs:
MyClass.MyMethod
MyOtherClass.MyMethod
The CSharpSyntaxWalker acts as a really great API for analyzing syntax trees. It allows one to accomplish a lot without resorting to using the semantic model and forcing a (possibly) expensive compilation. Whenever inspecting syntax trees and order is important, the CSharpSyntaxWalker is usually what you’re looking for.
